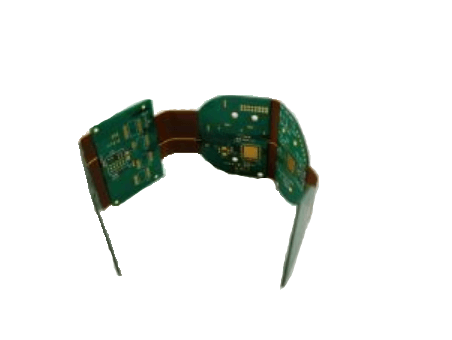

Rigid-Flexible Printed Circuit Board Capabilities

Each rigid flexible circuit board is made to provide a wide range of options to meet different production needs.

  • Up to 20 layers
  • Available in sizes up to 20″x24″
  • Base PI material in .0005, .001, and .002″
  • PI coverlay film in .0005, .001, and .002″
  • Min. line width/spacing for inner layer: 3.5/3.5 mil
  • Min. hole size: 8 mil
  • Adhesiveless & adhesive based stack-ups.
  • Blind and buried vias
  • Aspect ratio of 10:1
  • Eco-Bond available
  • PI or FR4 stiffeners
  • Laser trimming/HDI
  • Impedance control
  • IPC 6013 Class 2/Class 3
  • IPC-A-600 inspection standards
  • IPC-TM-650, GB/T4677-2002 test standards
  • RoHS Compliance
  • Design consultation available

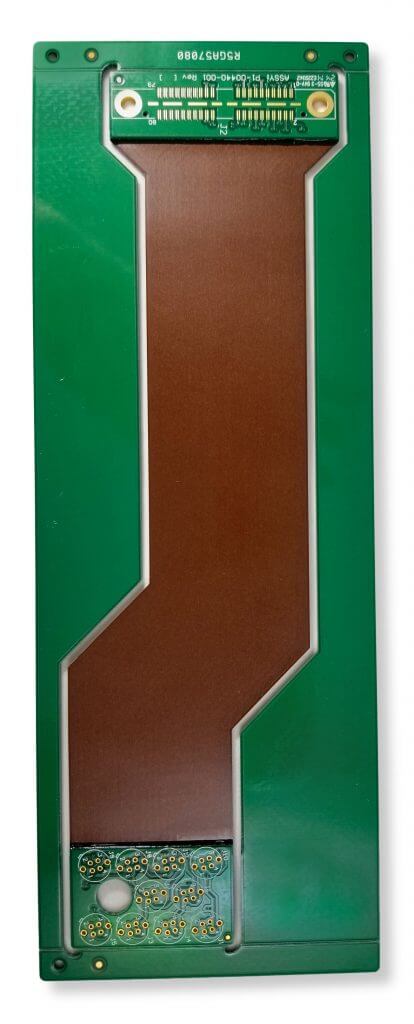

Rigid Flex PCB

Talk to our experts today about how we can match your specific rigid flex circuit board needs for your project! With experience over 12 years, we have become one of the leading printed circuit board suppliers to companies of all sizes, for projects of small to massive scales.

Our rigid flex circuit boards suppliers all provide solid engineering support and quality production capabilities. We will work closely with you to ensure that your rigid-flex PCBs are manufactured to your exact specifications while meeting the highest IPC standards.

What is a Rigid-Flex Circuit Board?

This multi-layer printed circuit board has the qualities of both rigid and flexible interconnecting layers that allow designers to replace multiple interconnected PCBs with a single board so you can cut down on wasted space and create a more effective design.

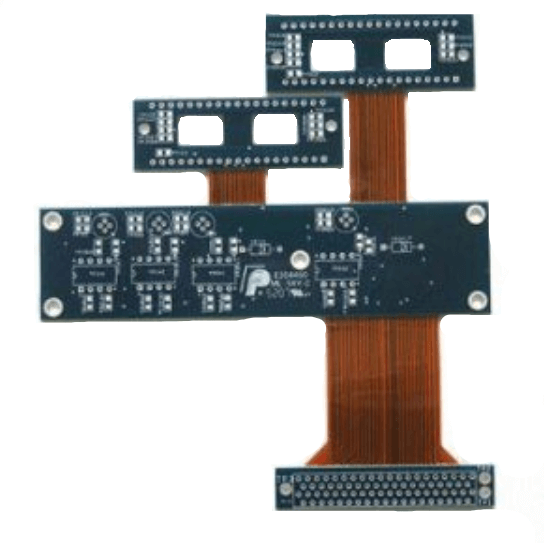

Industrial rigid-flex circuit board

Dynamic Rigid Flex Circuit Boards

Our Rigid-Flex circuit boards offer mechanical stability like none other! We bring you the best of integrated circuits with advantages of both rigid boards and flexible circuits, to offer space saving and easier maintenance advantages. Here, at PCB Solutions, we provide endless design options. Order today and enjoy better component density and quality control with our rigid flex circuit boards! We will take care of your needs.
