Rigid Printed Circuit Board Suppliers

Printed Circuit Board Supplier and Fabrication Capabilities

  • Lead Times – 1-15 Working Days
  • Max Layer Count – 1-50 Layers
  • Max Copper Weight – 6oz
  • Max Thickness – .400”
  • Minimum Thickness – .140”
  • Max Board Size – 24 x 30”
  • Material Types – High TD FR-4 – RoHS, Polyimide, Exotics
  • Surface Finish – HASL, LF-HASL, ENIG, OSP, Imm Silver, ENEPIG
  • Impedance – Yes +/- 5%
  • Via Options – Blind, Buried, Micro Vias
  • Line / Space Inner – 3 / 3
  • Line / Space Outer – 3 / 4
  • Rigid Domestic Prototypes – Additional Capabilities

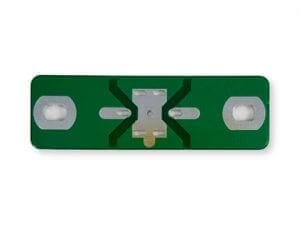

  • Rigid PCB Samples
  • Lead Times – 10-15 Working Days
  • Layer Count – 50 Layers
  • Copper Weight – 6oz
  • Max Thickness .400”
  • Minimum Thickness – .140”
  • Max Board Size – 24 x 30”
  • Material Types – High TD FR-4 – RoHS, Polyimide, Exotics
  • Surface Finish – HASL, LF-HASL, ENIG, OSP, Imm Silver, ENEPIG
  • Impedance – Yes +/- 5%
  • Via Options – Blind, Buried, Micro Vias
  • Line / Space Inner – 3 / 3
  • Line / Space Outer – 3 / 4
  • Expanded Summary

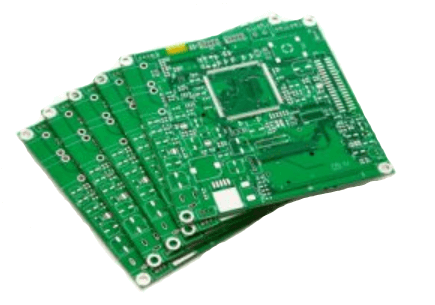

  • Rigid PCB Samples

  • Lead Times – 1-10 Working Days
  • Layer Count – 1-40 Layers
  • Copper Weight – 6oz
  • Max Thickness – Full Range
  • Minimum Thickness – .14”
  • Max Board Size – .40”
  • Material Types – High TD FR-4 – RoHS, Polyimide, Exotics
  • Surface Finish – HASL, LF-HASL, ENIG, OSP, Imm Silver, ENEPIG
  • Impedance – Yes +/- 5%
  • Via Options – Blind, Buried, Micro Vias
  • Line / Space Inner – 3 / 3
  • Line / Space Outer – 3 / 4
  • Expanded Summary

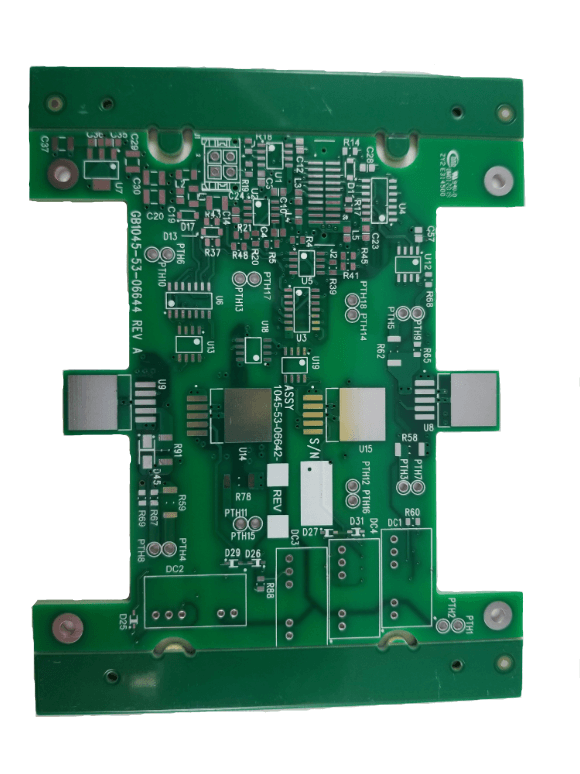

  • Rigid Military PCB Samples Page
  • Lead Times – 2-10 Working Days
  • Layer Count – 1-50
  • Copper Weight – 5oz
  • Max Thickness – .125
  • Minimum Thickness – .008”
  • Max Board Size 21 x 24”
  • Material Types – High TD FR-4 – RoHS, Polyimide, Exotics + more
  • Surface Finish – HASL, LF-HASL, ENIG, OSP, Imm Silver, ENEPIG + more
  • Impedance yes / no
  • Via Options – Blind, Buried, Micro Vias
  • Line / Space Inner – 3 / 3
  • Line / Space Outer – 3 / 4
  • Expanded Summary

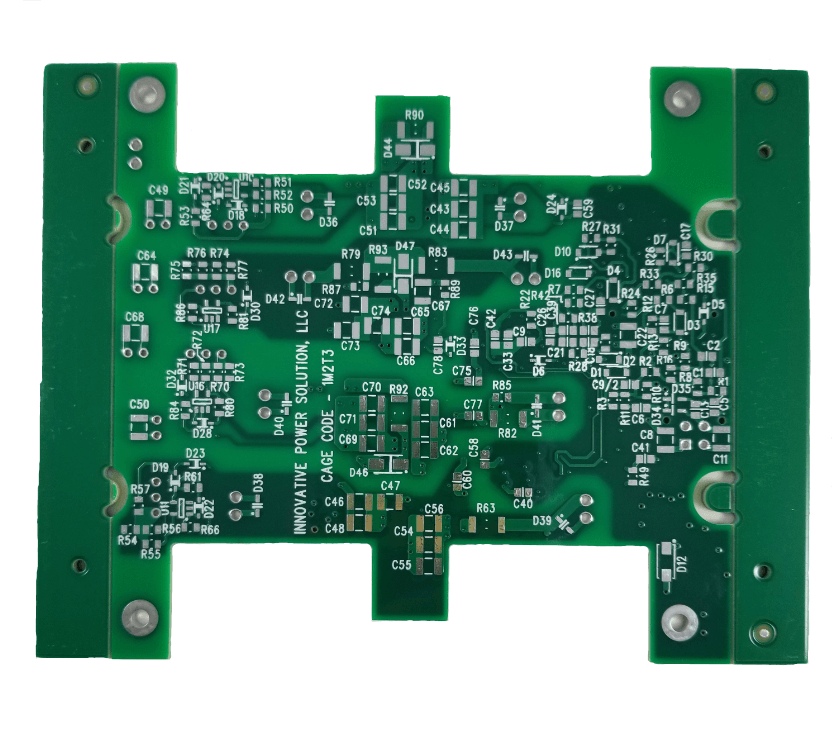

  • Rigid PCB Samples
  • Lead Times – 14-30 Working Days
  • Layer Count – 1-20
  • Copper Weight – 6oz
  • Max Thickness – .125”
  • Minimum Thickness – .008”
  • Max Board Size – 21 x 24”
  • Material Types – High TD FR-4 – RoHS, Polyimide, Exotics
  • Surface Finish – HASL, LF-HASL, ENIG, OSP, Imm Silver, ENEPIG + more
  • Impedance – Yes +/- 5%
  • Via Options – Blind, Buried, Micro Vias
  • Line / Space Inner – 3 / 3
  • Line / Space Outer – 3 / 4
  • Expanded Summary

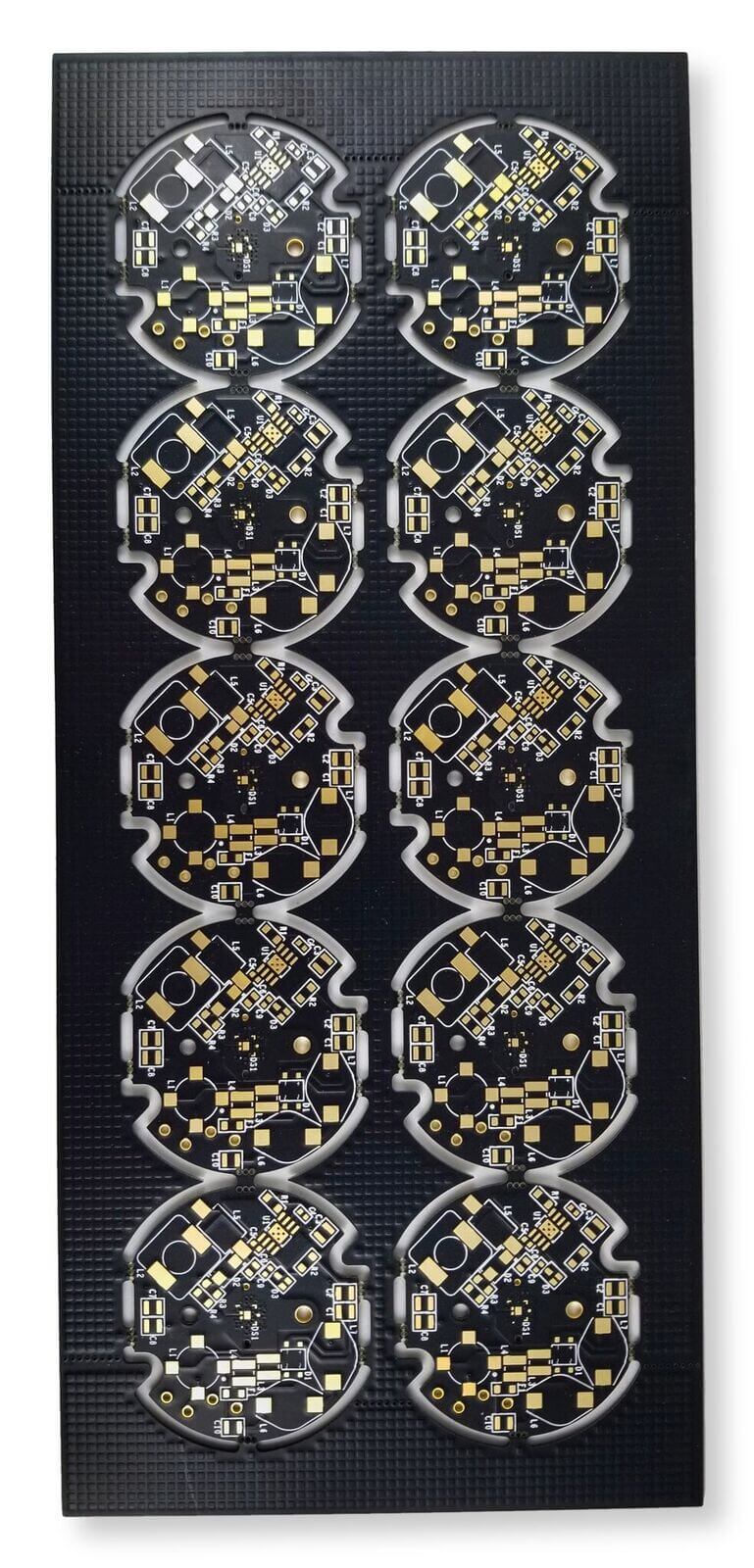

  • Rigid PCB Samples

PCB Solutions has suppliers that can produce complex quick turn prototype PCBs and high volume printed circuit boards suppliers that have been in business for more than 15 years. We have suppliers that use laser – direct imaging, laser drilling and contouring, high layer count lamination processing equipment, pulse plating equipment and other specialized equipment for simple and complex PCB designs.

The use of this specialized PCB Fabrication equipment allows for up to 40 layer rigid boards with 3 mil line / spacing and up to 20 layer Rigid Flex Circuits. Impedance controlled designs, backplane PCBs (thicknesses of up to .276 {7 mm}), aspect ratios of 22:1 are produced regularly at our factories.

Our Advanced Technology Boards include, but are not limited to the following: High TG Circuit Boards, Backplanes, High-frequency boards, Halogen-free boards, Flexible and Rigid-Flex boards, Hybrids, HDI boards… See our production specifications below.

Start Your Quote

Call 801-361-1228
