In this blog post we highlight a very unique flex circuit we have produced for over 5 years now. The customer came to us with concerns about a current supplier that were not making the PCB to their specifications and were having issues with overall quality. With the help of our in-house Design For Manufacturing engineer, we were able to work with the production engineer to create a process that provided a smooth, consistent high quality product over and over.

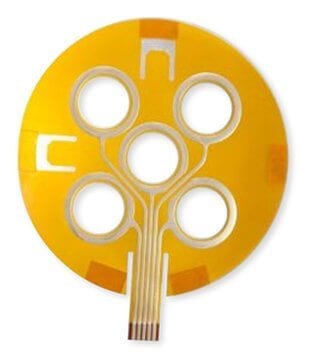

Single Layer Flex Printed Circuit Board

Layer Count: One

PCB Type: Flex

Material: Taliflex Polyimide

Stiffener: Yes

Coverlay:  .002” PI bottom side

Adhesive: Yes

Surface Finish: ENIG

Overall Thickness: .13mm

Finished Copper Weight: 1oz

Impedance Control: No

Legend: None

RoHS Compliant: Yes

Typical Order Quantity: 1000-5000

Typical Lead Time: 14 working days


If you have a new flex design or an old flex design you are having troubles with, please reach out to our team. We are confident we have the ability to produce a high quality product consistently.
